Rooftop Structure
Overview Of Rooftop Structure

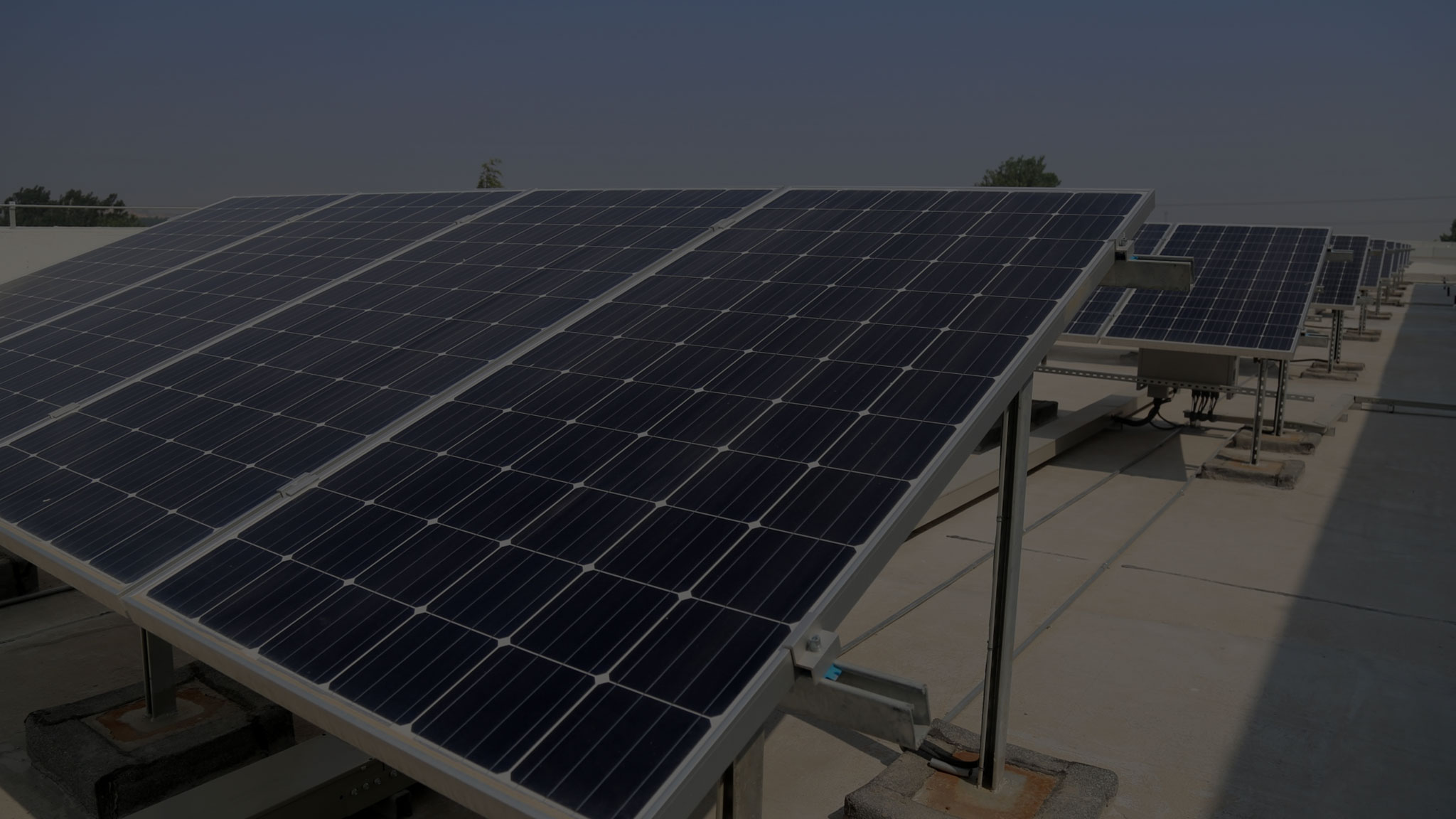

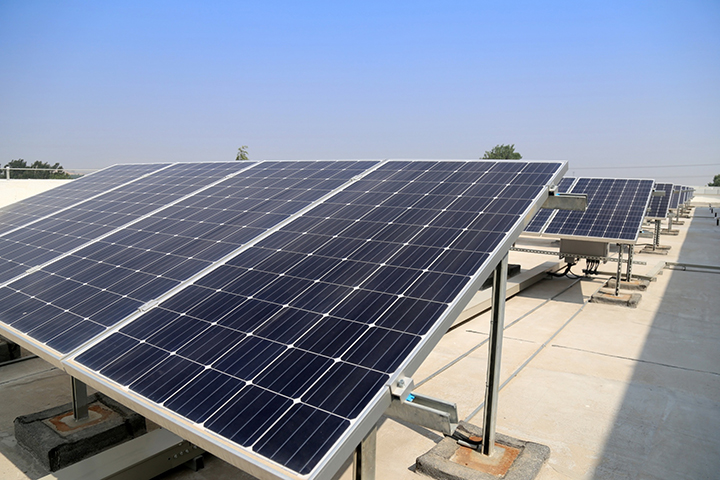

Solar rooftop structures are specially designed mounting systems used to install solar panels on different types of roofs—residential, commercial, or industrial. They help make the best use of available rooftop space by fixing the panels at the right tilt and orientation to get maximum sunlight. These structures work well on flat RCC roofs, sheet metal roofs, tiled roofs, and industrial sheds. Whether it’s a small home system or a large commercial plant, rooftop structures provide a safe, stable, and long-lasting base for solar power generation without affecting the roof’s strength.
Made from galvanized steel with anti-corrosive coatings, these structures are built to withstand harsh weather for over 20 years. They can resist wind speeds up to 150–180 km/h and can be installed using ballasts, chemical anchors, clamps, or L-feet, depending on the roof type. Options include fixed or adjustable tilt for seasonal changes, ensuring higher energy yield. With easy installation, site-specific designs, and compatibility with all standard solar panels, rooftop structures offer a reliable solution for modern solar projects.
2 GWp
Rooftop Solar Structures Supplied Nationwide
Product Specifications
Technical
Solar rooftop structures are durable mounting systems designed for fixing PV panels on residential, commercial, or industrial rooftops with optimized tilt for maximum energy output.
Purpose & Design : Fixed or adjustable tilt rooftop systems for residential, commercial, and industrial buildings. Suitable for flat RCC, industrial sheds, and sloped/tin roofs.
Materials & Surface Treatment : Galvanized Steel (MS/CRCA, Q235B) provides strength; stainless steel (SUS304/316) fasteners resist corrosion. Surface coatings include HDG, anodizing, and Zn-Al-Mg.
Tilt & Orientation : Tilt angles range from 10° to 30°, optimized according to latitude. Adjustable systems can increase energy yield by 3–7% seasonally.
Rooftop Compatibility : Supports ballast-mounted or anchor bolt installation on flat RCC roofs, clamp-based or penetrative systems for metal sheets, and specialized rails for tiled/asbestos roofs.
Load Capacity & Durability : Wind resistance: 150–180 km/h; snow load: 1.0–1.5 kN/m². Lifespan: 20–25 years with a 10–15 years structural warranty.
Installation & Foundations : Pre-assembled components for rapid installation. RCC roofs use ballast or chemical anchors; metal roofs utilize L-feet and clamps without welding or drilling.
Compliance & Customization : Custom designs per roof type, span, and panel size. Complies with IS-800, IS-875, ASCE7, EN-1991; fire-safe and wind tunnel-tested for high-rise buildings.
Key Features
Raydean rooftop structures are engineered for easy installation, structural strength, and long-term energy optimization across multiple rooftop types.
High-Strength Materials : Galvanized steel frames with stainless steel fasteners ensure corrosion resistance and robust structural support for PV modules.
Adjustable Tilt Options : Seasonal tilt adjustment allows optimized energy generation throughout the year, improving solar output efficiency by 3–7%.
Versatile Roof Compatibility : Supports RCC, industrial sheds, metal sheet, tiled, and asbestos roofs, accommodating diverse project needs and roof types.
Weather Resistance : Engineered to withstand wind loads up to 180 km/h and snow loads up to 1.5 kN/m², ensuring reliable performance.
Easy Installation : Pre-fabricated modular components allow rapid assembly and disassembly with minimal roof damage, suitable for relocations.
Wide Panel Compatibility :Compatible with all standard PV panels (400–600 Wp) and adaptable to various roof layouts.
Safety & Compliance :Wind tunnel-tested, fire-safe, and compliant with international and IS standards, ensuring long-term structural integrity and reliability.
Product Advantages
Raydean rooftop structures deliver strength, energy efficiency, and durability, making them ideal for residential, commercial, and industrial solar installations.
Optimized Energy Output : South-facing orientation with tilt adjustments ensures maximum solar generation on rooftops of all types.
Long-Lasting Durability : Hot-dip galvanization and premium materials provide 20–25 years of maintenance-free performance.
Flexible & Scalable : Customizable for roof type, span, and panel size; scalable for small or large installations.
Cost-Efficient Solution : Reduces dependency on conventional energy while lowering installation and maintenance costs over time.
Reliable Performance : Designed for wind, snow, and diverse climatic conditions, offering uninterrupted solar power generation.
Easy Maintenance : Pre-fabricated modular components simplify cleaning and inspection of PV panels on rooftops.
Structure Kit available for PM Surya Ghar Yojana
- Universal Fit: Compatible with all Module Sizes
- Cost: Starting from Rs 2.0/Wp
- Available for 3.0 KW to 10.0 KW
- Hassle-free Setup: No Welding On-site
- Prime Grade Material
- Easy to Install
Ready to start your project with reliable and sustainable solutions? Get in touch today.
Why Choose Us
Raydean believes in quality, reliability, and sustainability. We offer reliability in our long-lasting solutions while building a strong reputation for service and customer satisfaction. Raydean also helps build smart, green, efficient infrastructure for homes, offices, and industries.
We make your projects easier, more durable, and more reliable.
Solutions you can trust for today and tomorrow.
Creating better infrastructure through care, skill, and commitment.
We deliver quality and simplicity with every project we undertake.
Industrial Applications
Raydean manufactures support structures, solar support sets, and heavy-duty plant and factory support poles. They increase plant and factory productivity, workflow efficiency, and working safety.
Corrosion-resistant galvanized steel structures ensure durability and minimal maintenance. Solar integration reduces energy costs, making these solutions ideal for manufacturing units, warehouses, and industrial complexes.
Residential Rooftop Solar
Raydean solar roof mounting solutions make it simple for small residential and commercial buildings to harness clean power. Its structures support mono, poly, and bifacial PV modules, allowing for the highest power output from small roof space.
These compact, long-lasting systems have fixed or tilt-adjustable settings, weather-resistant materials, and quick and easy installation. With residential solar structures from Raydean, householders save on electricity, make their contribution to sustainable objectives, and have efficient, low-maintenance solar power solutions.
Industrial Applications
Raydean manufactures support structures, solar support sets, and heavy-duty plant and factory support poles. They increase plant and factory productivity, workflow efficiency, and working safety.
Corrosion-resistant galvanized steel structures ensure durability and minimal maintenance. Solar integration reduces energy costs, making these solutions ideal for manufacturing units, warehouses, and industrial complexes.
Residential Rooftop Solar
Raydean solar roof mounting solutions make it simple for small residential and commercial buildings to harness clean power. Its structures support mono, poly, and bifacial PV modules, allowing for the highest power output from small roof space.
These compact, long-lasting systems have fixed or tilt-adjustable settings, weather-resistant materials, and quick and easy installation. With residential solar structures from Raydean, householders save on electricity, make their contribution to sustainable objectives, and have efficient, low-maintenance solar power solutions.
