Solar Water Pumping System
Overview Of Solar Water Pumping System

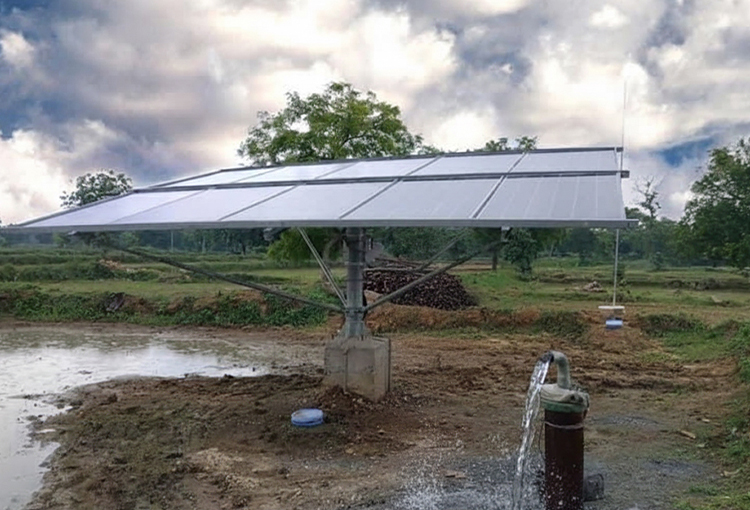

Solar water pumping structures are specially designed systems that hold photovoltaic (PV) panels to power submersible or surface water pumps. Widely used for irrigation, drinking water supply, livestock watering, and rural development schemes, these structures help provide a reliable water source while using renewable solar energy. They are designed for durability, easy installation in fields, and low maintenance, making them ideal for off-grid and remote locations.
Raydean manufactures solar water pump structures using high-quality mild steel (IS 2062/Q235B) with hot-dip galvanization and stainless steel fasteners to resist corrosion. Fixed or adjustable tilt options (15°–25°) maximize solar energy capture, and structures can be ground-mounted, rooftop-mounted, or portable for small pumps. Built to withstand wind speeds up to 150 km/h and snow loads of 1–1.5 kN/m², they support pump capacities from 0.5 HP to 10 HP. Compliant with MNRE and IS standards, these structures ensure long-term performance, higher water output, and cost-effective solutions for agriculture, rural water supply, and livestock management.
Product Specifications
Technical
Solar water pumping systems use solar energy to power submersible or surface pumps for irrigation, drinking water, livestock, and rural supply. These systems are engineered for durability, efficiency, and low maintenance, ideal for off-grid and remote applications.
Purpose & Design: Uses solar PV power to run submersible or surface pumps, replacing diesel or grid-based systems with clean and cost-effective energy.
System Components: Includes solar PV modules (335–550 Wp), MPPT-based pump controllers/inverters, surface or submersible pumps, fixed-tilt galvanized structures, optional battery bank, and GI/HDPE piping with accessories.
Capacity Range: AC and DC pumps from 0.5 HP to 10 HP with discharge capacities between 20,000 – 100,000 litres/day, depending on pump size, solar radiation, and water table.
Materials & Durability: Pump bodies made of Stainless Steel (SS 304/316) or coated cast iron; structures are hot-dip galvanized MS with a 20–25-year life; IP65/IP67 enclosures for controllers.
Performance & Efficiency: MPPT controllers increase output by 20–25%, ensuring operation even in low-light conditions, with optional hybrid (solar + grid/diesel) modes.
Load Capacity & Safety: Overload, dry-run, surge, and lightning protection with wind load resistance up to 130–150 km/h and ambient temperature tolerance up to 50 °C.
Subsidy & Scheme Link: Eligible under PM-KUSUM Components B & C with 60% subsidy (30% Central + 30% State), 30% bank loan, and 10% farmer contribution.
Key Features
Designed to deliver a reliable water supply with minimal operational cost, Raydean solar pumping systems combine advanced engineering with government-backed incentives.
High Efficiency: MPPT-based controllers and BEE 5-star rated pumps improve output and reduce operational costs.
Durable Structures: Hot-dip galvanized mounting structures with a 20–25 year lifespan ensure long-term reliability.
Versatile Pump Options: Surface pumps for canals/ponds and submersible pumps for borewells up to 150 m depth.
Low Maintenance: Minimal moving parts and no fuel dependency ensure reduced servicing and running costs.
Renewable & Clean Energy: 100% solar-powered system cuts carbon footprint and dependence on grid/diesel.
Government Support: PM-KUSUM subsidies make adoption affordable and accessible for farmers across India.
Product Advantages
Raydean solar water pumping solutions offer end-to-end benefits from design to installation, ensuring smooth, sustainable, and cost-effective operation.
Complete Turnkey Solutions: Covers solar structures, pumps, controllers, and installation under one roof.
Customization: Available in low, medium, and high-pressure variants, adaptable to various agricultural and rural applications.
Superior Build Quality: Stainless steel pumps (AISI-304) resist wear, corrosion, and sand for long service life.
Proven Reliability: Designed to withstand extreme weather conditions with tested components and robust structures.
PM-KUSUM Expertise: Assistance with documentation, subsidy processing, and scheme implementation for farmers.
Trusted EPC Partner: Raydean’s strong industry experience ensures quality execution and after-sales support.
MNRE Approved Water Pumping Structures for PM Kusum Yojana
Ready to start your project with reliable and sustainable solutions? Get in touch today.
Why Choose Us
Raydean believes in quality, reliability, and sustainability. We offer reliability in our long-lasting solutions while building a strong reputation for service and customer satisfaction. Raydean also helps build smart, green, efficient infrastructure for homes, offices, and industries.
We make your projects easier, more durable, and more reliable.
Solutions you can trust for today and tomorrow.
Creating better infrastructure through care, skill, and commitment.
We deliver quality and simplicity with every project we undertake.
Agriculture Application
Raydean plays a key role in sustainable agriculture with its solar structures for agricultural applications. Our mounting systems for solar water pumps facilitate effective irrigation by ensuring consistent, off-grid power for surface pumps and borewells. This minimizes reliance on fuel generators and guarantees a steady water supply to farms, including remote ones.
Besides, our solar water tank buildings provide a cost-effective solution for water storage and distribution in irrigation and livestock. Other products include solar fencing and solar trackers. Raydean also provides agrivoltaic structures, facilitating double land use by integrating crop cultivation and power generation from solar energy. The solutions enable farmers to reduce the cost of operation, increase productivity, and encourage the use of renewable energy sources in agriculture.
